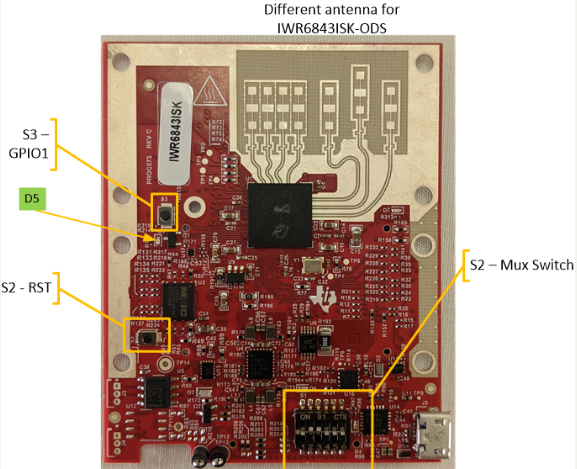

IWR6843ISK, Rev D

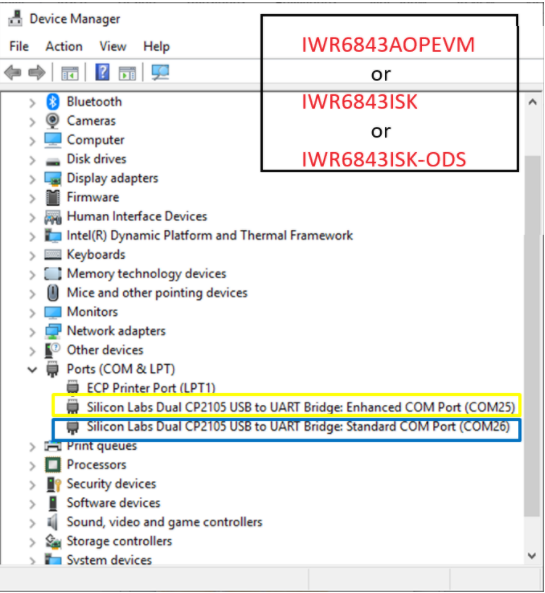

Get COM port numbers using Device Manager
| Color | Name in Device Manager | Generic Name | Port Function |
|---|---|---|---|
| Yellow | User UART or Enhanced COM Port | CFG Port | Used for passing configuration data and firmware to the EVM |
| Blue | Data Port or Standard COM Port | Data Port | Used to send processed radar data output |
Set SOP Mode
Flashing Mode
| S1.1 | S1.2 | S1.3 | S1.4 | S1.5 | S1.6 | |
|---|---|---|---|---|---|---|
| S1 switch settings | On | Off | On | On | Off | N/A |
Functional Mode
| S1.1 | S1.2 | S1.3 | S1.4 | S1.5 | S1.6 | |
|---|---|---|---|---|---|---|
| S1 switch settings | Off | Off | On | On | Off | N/A |
